MAIN FUSE BLOCK TO WIRE A CUSTOM MOTORCYCLE

Shipping calculated at checkout.

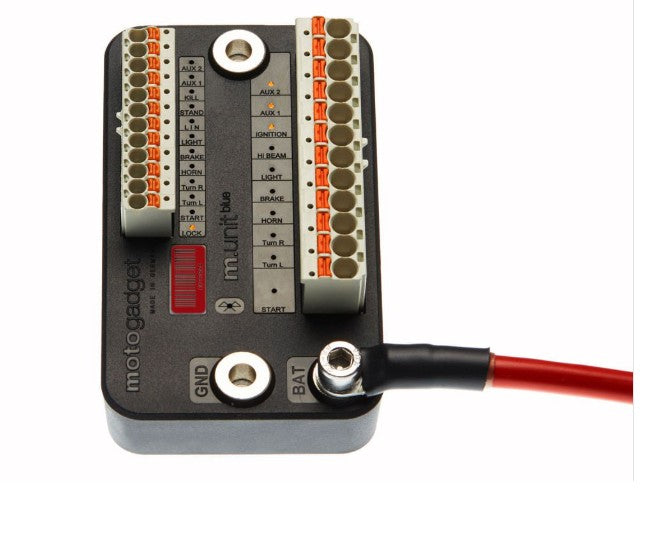

FUSE PANEL TO CUSTOM WIRE A MOTORCYCLE

Functions and Operation:
The mo.unit can act as the central control unit in the vehicle’s electrical system. It provides the following features:

Complete digital pushbutton control unit; optional 4 or 5 pushbutton operation
Complete replacement of all OEM fuses. 10 independent circuits are digitally supervised; a circuit will be shut down in case of interferences. On removing the interference, the safety feature will be automatically reset
Integrated, digital, load-independent flasher relay; with programmable switch-off feature (optional), selectable mo.wave mode
Direction indicator setting for use as position light
Parking light, high beam flasher
Integrated digital brake-light modulator with programmable flashing sequence, acceleration controlled emergency brake-light
Pairing of mo.unit with other Motogadget products via LIN bus
Integrated starter relay for solenoid switch (up to 30A switching capacity)
Smart and fully configurable load control / shut-off for maximum starting power of battery on starting process
Low and high beam control (up to 200W switching power) using just one pushbutton
Integrated digital horn relay
Integrated position-independent alarm system
Integrated hazard light feature
Diagnostic feature for layout of input, output, circuit switching status plus diagnosis of electrical circuit, short-circuits, etc.
Two fully configurable auxiliary outputs AUX1 and AUX2
Calibration and current monitoring allows defect detection of all lights and blinkers

Scope of delivery:

Dimensions and specifications:

L/W/H: 90 x 53 x 30 mm (3.5" x 2.1" x 1.2")
Weight: approx. 180 g
Mounting: 2 x M5 screws, stainless steel (mounting and ground terminal), 1 x M5 screw-on terminal for battery positive
Operating voltage: 6V - 20V
Operating temperature: -20 °C... +80 °C

Inputs:

1 x input (+12V switched) for ignition lock or m.Lock
11 x control pilot inputs (minus/ground, switched) for left turn signal, right turn signal, low beam/high beam, starter, horn, brake light, kill switch, kick stand switch, LIN-Bus, AUX1 and AUX2

Outputs:

10 x Outputs (+12V) for left turn signal, right turn signal, Lo-beam, Hi-beam, starter, horn, brake light, ignition, AUX1 and AUX2
